Interactive Chua's circuit 3D simulation

Chua's circuit simulator

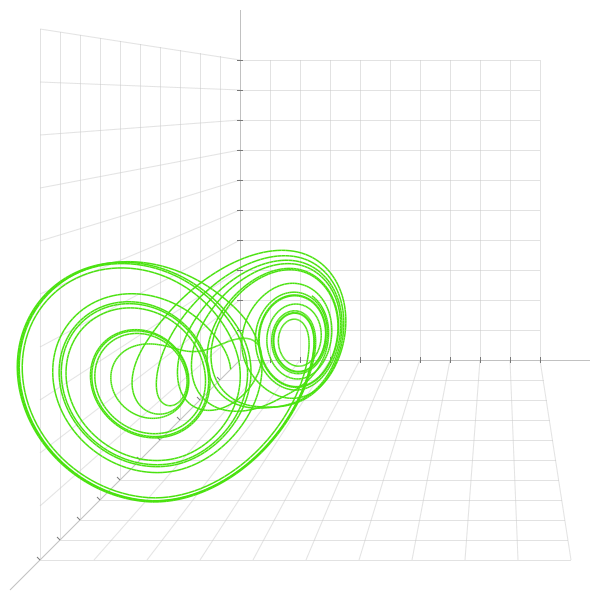

This Chua's circuit simulation is calculated using Javascript and projected in HTML5.

X=0.00
Y=0.00
Z=0.00
T=0.00

Chua circuit equations:
        dx/dt = c₁*(y-x-f(x))
        dy/dt = c₂*(x-y+z)
        dz/dt = -c₃*y
        f(x) = m₁*x+(m₀-m₁)/2*(|x+1|-|x-1|)

We also have code and a 3D animation from a Matlab simulation of Chua's circuit
