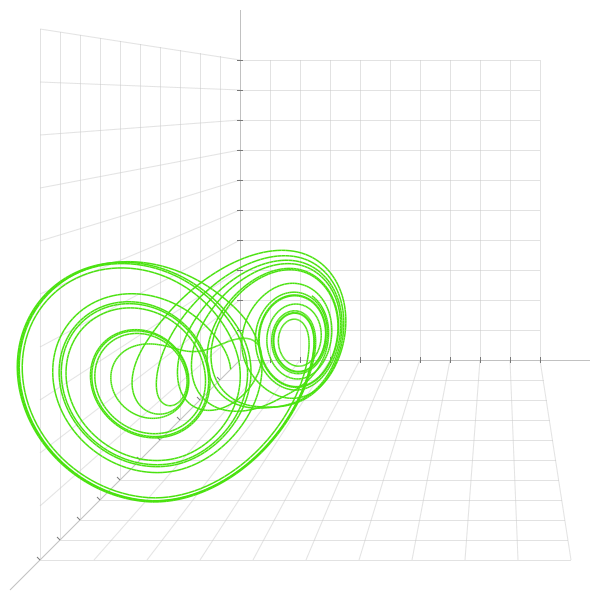

Chua's circuit simulator
This Chua's circuit simulation is calculated using Javascript and projected in HTML5.
X2=0.00
Y2=0.00
Z2=0.00
T2=0.00
Initial2: X2: Y2: Z2:
Default X2: 0.7    Y2: 0      Z2: 0
C1_2:  Default: 15.6
C2_2:  Default: 1
C3_2:  Default: 28
M0_2: Default: -1.143
M1_2: Default: -0.714
Chua circuit equations for 2:
        dx/dt = c1_2*(y-x-f(x))
        dy/dt = c2_2*(x-y+z)
        dz/dt = -c3_2*y
        f(x) = m1_2*x+(m0_2-m1_2)/2*(|x+1|-|x-1|)
This simulation doesn't work.
Please upgrade to Firefox or a similar browser
